Diagnostic Ultrasound System

Consona N Series

Concrete to Resonate

The Consona features new and concrete solutions, that efficiently help you to carry out smooth diagnoses for extensive type of patients. You will find highly powerful tools available on this series to keep you stay ahead in Cardiovascular diagnosis.

Excellent Imaging Technology

Powered by ZST+ Platform

The ZST+ platform is an extraordinary innovation, representing an ultrasound evolution. Transforming ultrasound metrics from conventional beam-forming to channel data based processing.
It overcomes the traditional trade-off limitation among spatial resolution, temporal resolution and tissue uniformity, delivering exceptional image quality for infinite imaging solutions with non-stop improvement.

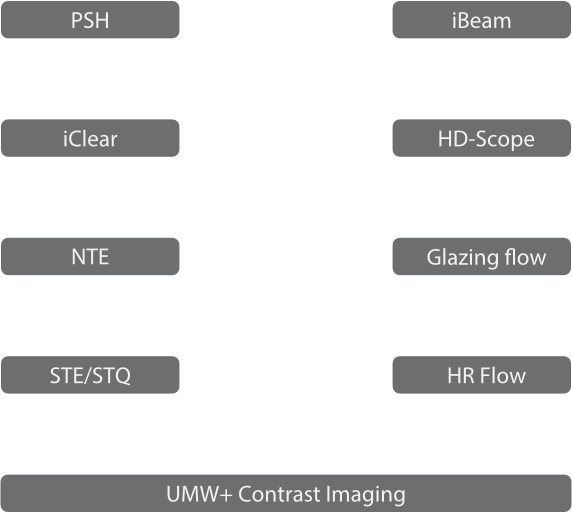

Advanced Image Functions

Support a series of advanced image optimization functions to provide ultra clear image.

Transducer Family

• Single-Crystal transducers provide deeper penetration with details
• ComboWave transducers enhance imaging sensitivity
• Designed for comfortable gripping
• Wide clinical application coverage, supports more clinical scenarios

Convenient User Experience

Dedicated to improve scanning efficiency with more accuracy and consistency for Cardiovascular applications.

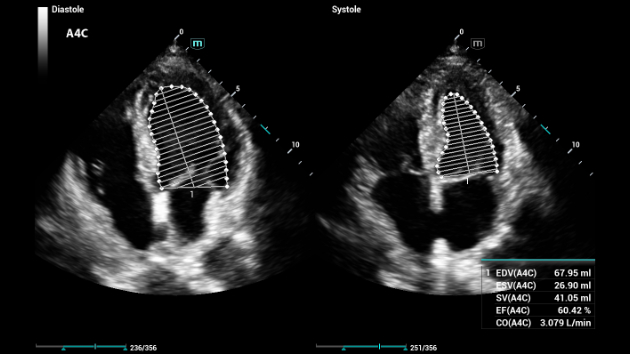

More productivity with auto calculation

Auto EF is an intelligent way to analyze 2D echo clips to automatically recognize diastole & systole frames and output a series of measurements to evaluate left ventricle function for more productivity, such as EDV/ESV/EF.

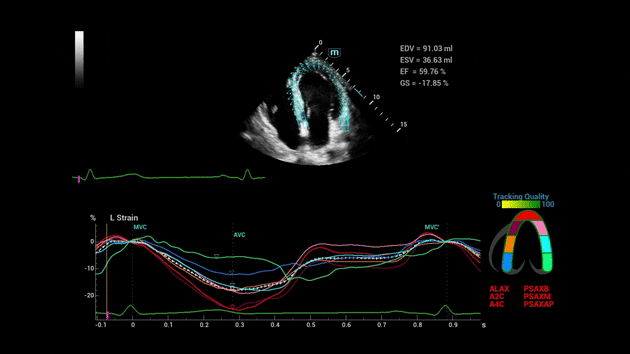

Myocardial synchronization evaluation with quantitative analysis

Based on the excellent transducer technology, Consona series signi cantly improves the tracking accuracy and eff ectiveness. With the unique added bene t of on-site analysis, the TT-QA can be performed at the bedside, saving time and simplifying challenging diagnoses.

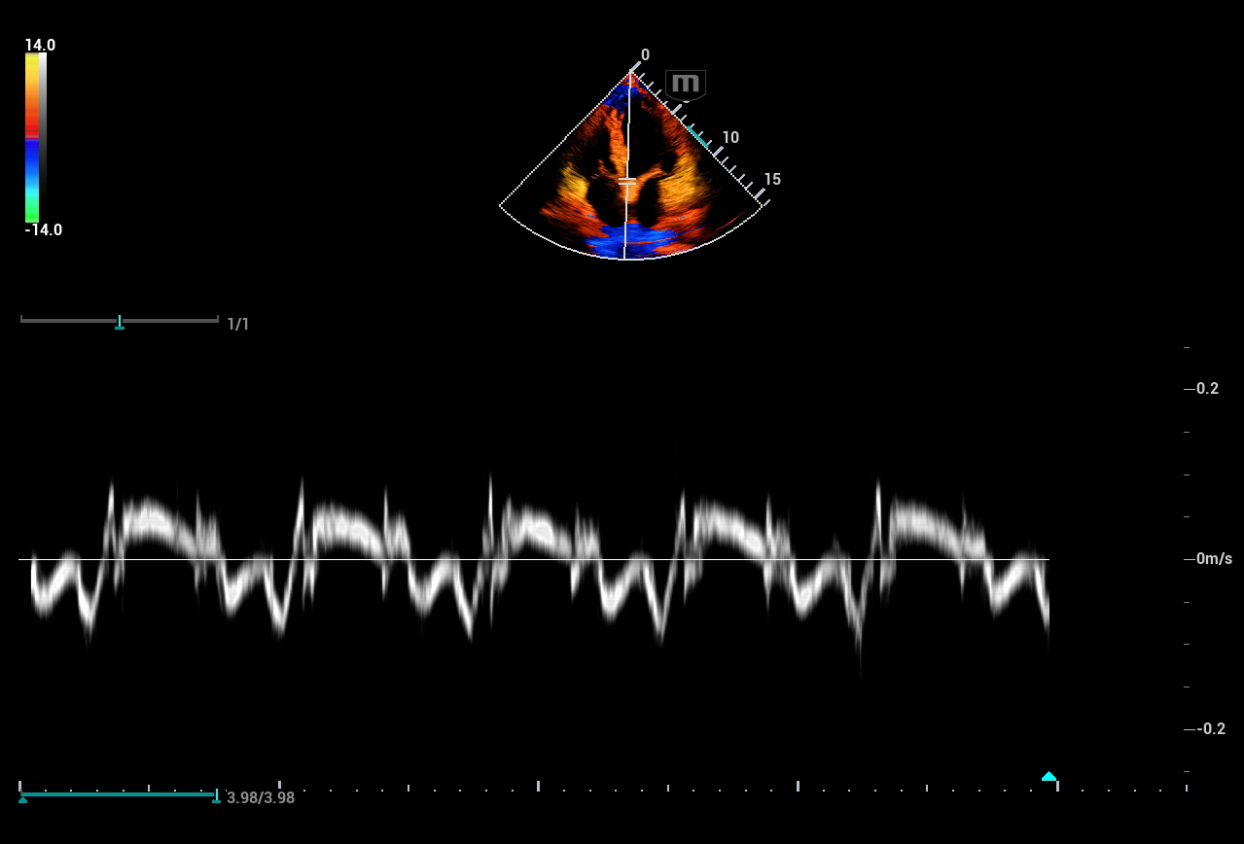

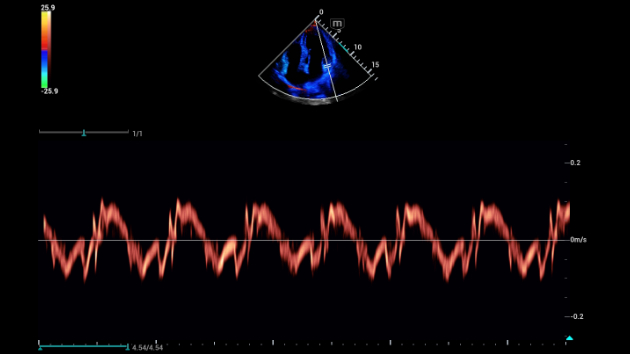

Multi-TDI modes TVI, TEI, TVD and TVM

Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.

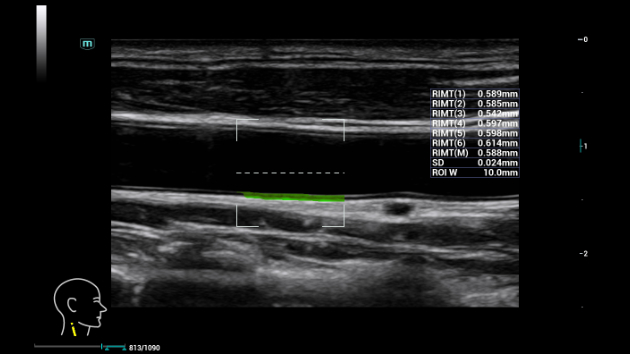

RF-data based real time IMT measurement

High precision, real time and auto measurement, can improve early diagnosis of CVDs and improve the e ffectiveness of pharmacy treatment follow-up.

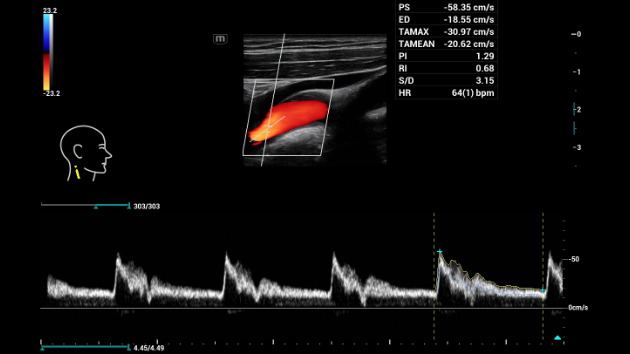

Automatic trace, measurement and calculation tool

Saves measurement time cost by auto tracing the spectrum. Improve accuracy and repeatability of spectrum edge tracing.

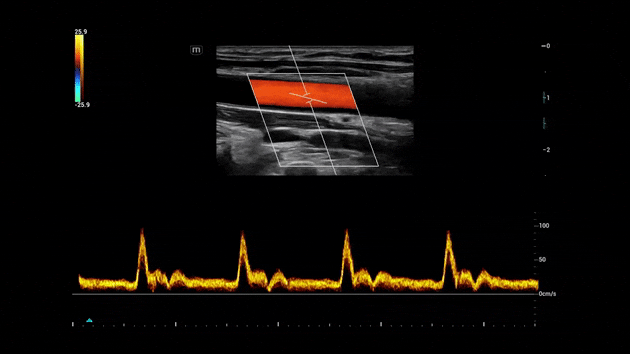

ROI angle and position auto-adjustment

It's Mindray unique feature to reduce repetitive, time-consuming scanning steps in vascular exams. Smart Track provides intelligent and real-time vessel tracking and real-time image optimization of Color and PW.

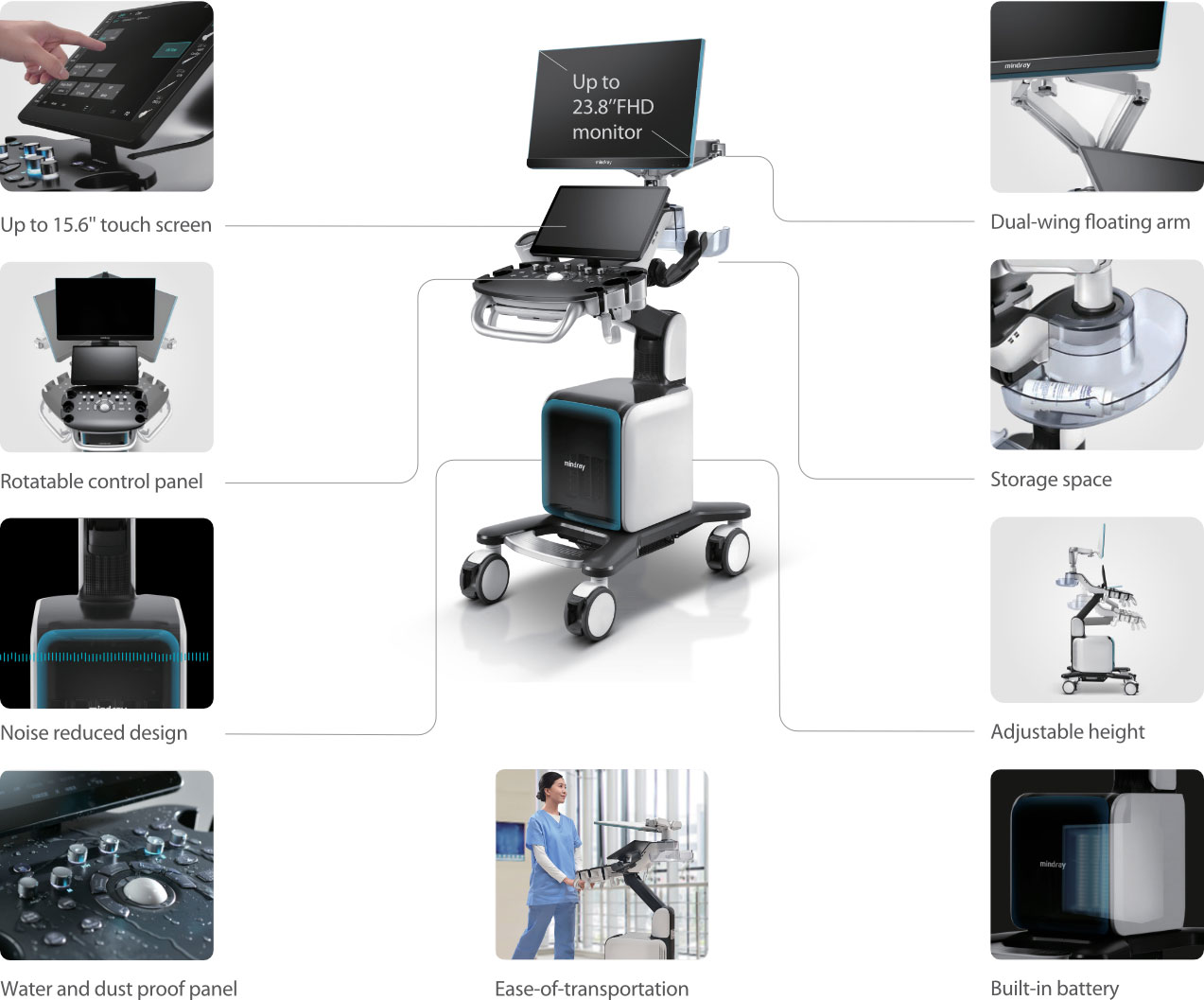

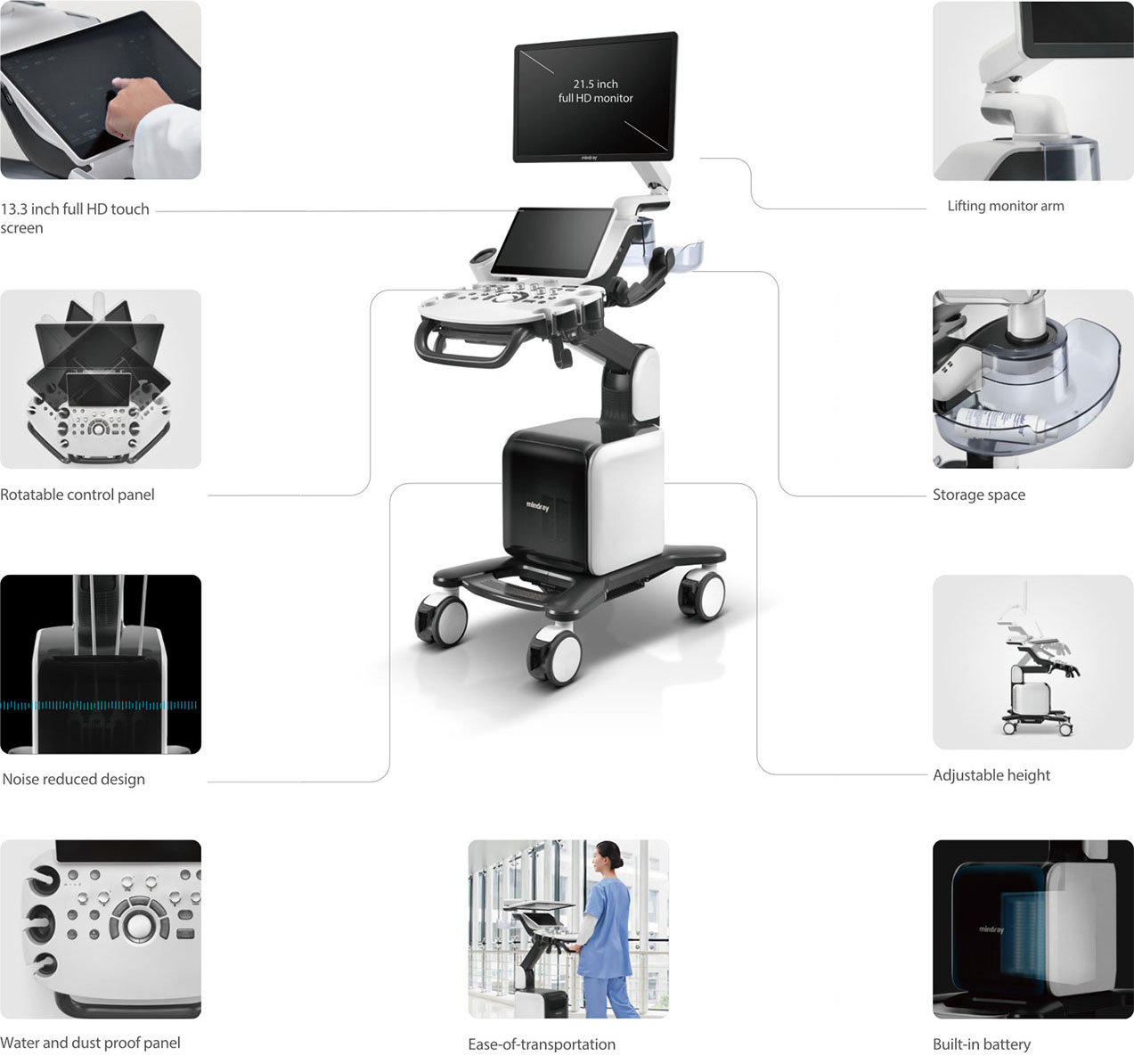

Ergonomic design

Boosts the daily work efficiency

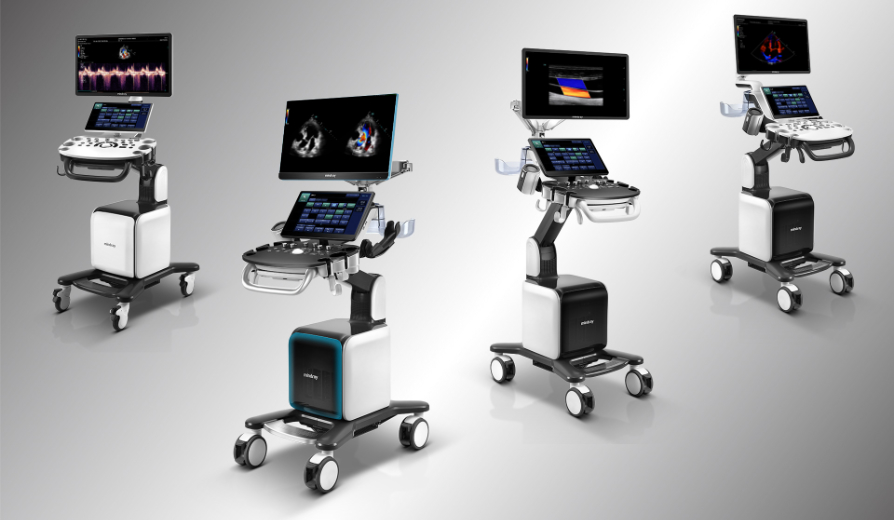

Consona N9

Consona N7

Clinical images

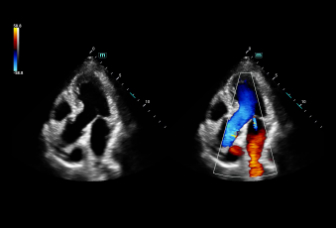

4CH Dual live

Carotid Intimal plaque B

4CH TVD

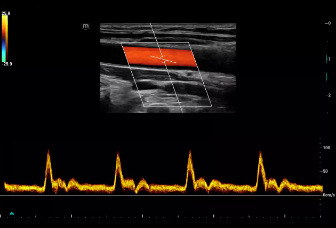

Carotid PW

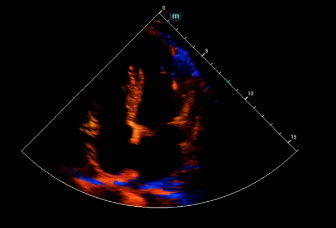

5CH-TVI

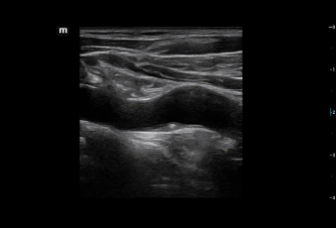

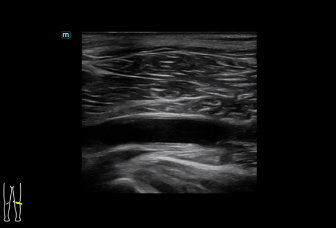

Lower Ext. Artery plaque

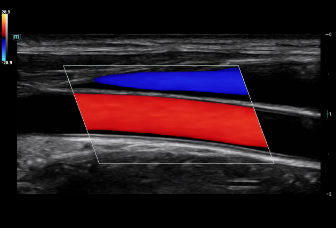

Carotid & Jugular vein

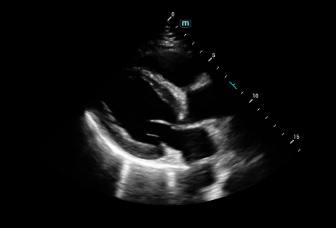

PLAX B

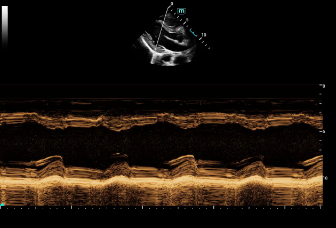

PLAX M mode
